Reverse osmosis water purification

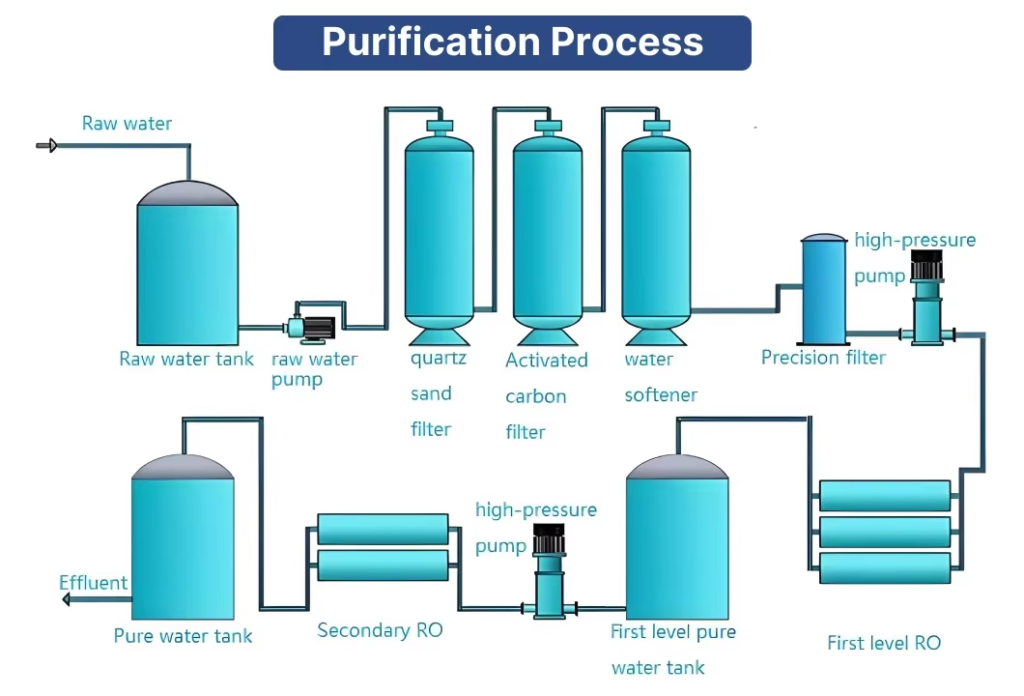

Workflow: The water purification journey begins with raw water, seamlessly flowing through each stage: Raw water pump → Mechanical filter → Activated carbon filter → Adding antiscalant → Precision filter → RO high-pressure pump → RO reverse osmosis membrane element → Final effluent. This advanced process ensures the pristine purity and reliability of every drop, tailored to both residential and industrial needs.
- Water Tank: Designed as an essential reservoir for storing tap water, effectively solving problems related to insufficient tap water pressure. This solution prevents interruption of the booster pump operation due to water pressure deficiencies. Its innovative approach significantly reduces the failure rate caused by insufficient water supply, ensuring consistent and reliable system performance.
- Booster Pump: Equipped with a robust stainless steel pump, this component provides the crucial pressure required for subsequent filtration stages, ensuring optimal system efficiency.
- Quartz Sand Filter: Professionally designed to effectively remove sludge, suspended solids, and large particles, this filter ensures the initial cleanliness of tap water.
- Carbon Filter: Specifically designed to remove organic matter, residual chlorine, and unpleasant odors from tap water, enhancing its purity and taste.
- Safety Filter: Provides an additional filtration layer, protecting the reverse osmosis membrane from potential contaminants.
- High-Pressure Pump: Provides the essential pressure required for the reverse osmosis system, guaranteeing optimal performance.

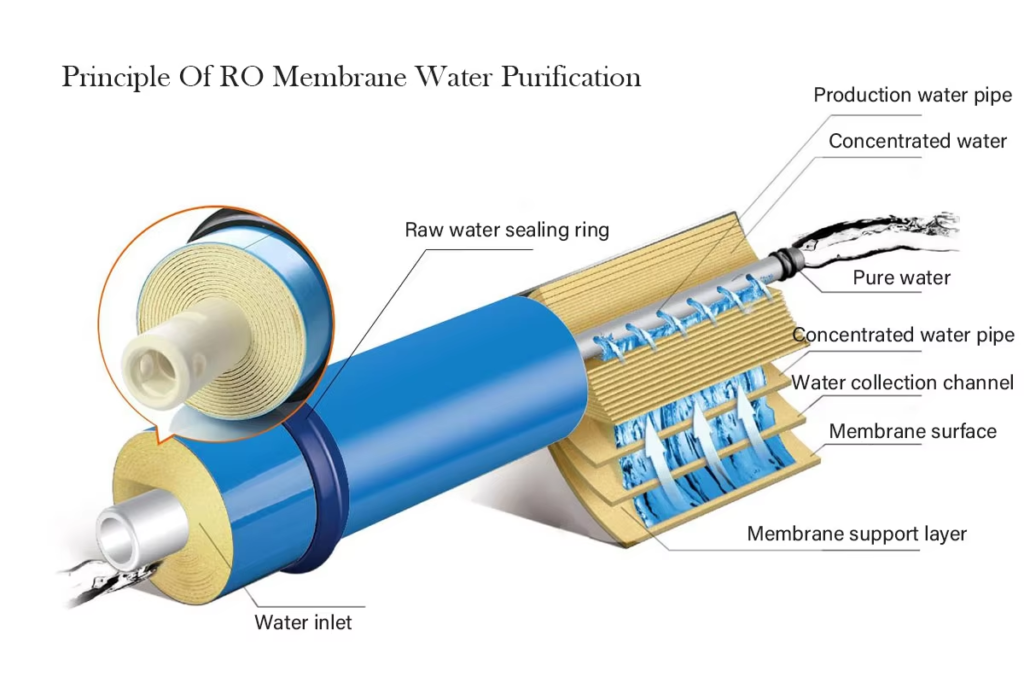

- Reverse Osmosis Unit: This is the heart of our pure water equipment, meticulously designed to produce ultra-high purity water that meets the most stringent quality standards.
- Pure Water Tank: Designed specifically for storing pure water, the tank capacity can be adjusted to meet specific needs. Following a comprehensive filtration process, the resulting water has unparalleled purity and is suitable for a wide range of applications. Its broad applicability ensures high-quality water for every use.
You can choose from a variety of configurations to best suit your needs: fiberglass or stainless steel tank filtration systems, available with or without pre-filters. Our systems are designed with flexibility in mind. We can customize a system to your precise requirements, ensuring it perfectly meets your specific needs and expectations.
| Parameters | RO-0.5T | ||
| Machine Size(L*W*H) | 1500mm*650mm*1700mm | ||
| Equipment treatment process | Raw water→raw water pump→mechanical filter (quartz sand filter)→ activated carbon filter→added scale inhibitor→precision filter→RO high-pressure pump→RO reverse osmosis membrane element →finished water | ||
| Control mode | Fully automatic operation | Device power | AC/380V/50HZ |
| Unladen weight | 260KG | Running weight | 500KG |
| Raw water pump | Q=2m³/H H=30m | High Press Pump | Q=2m³/H H=90m |
| Quartz sand filter | φ250×1400mm | Activated carbon filter | φ250×1400mm |
| Precision filters | 5 cores 10 inches | Precision filter element | 10”5μm |
| Scale inhibitor dosing pump | Q=1L/H H=50m | Scale inhibitor dosing box | 40L |
| Reverse osmosis membrane vessels | 1 core 4 inches | Reverse osmosis membrane model | 4040 |
